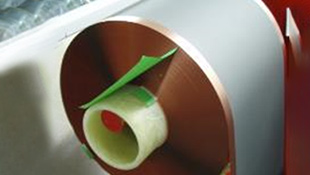

Electrodes

이차전지 전극

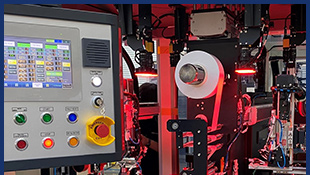

Equipment

생산 설비

생산 설비

설명

이차전지 생산 장비는 제품 개발과 상용화를 성공시키기 위해 중요한 요소입니다. 탑머티리얼은 협력업체들과 함께 고품질의 개발라인과 양산라인을 위한 전체 장비를
설계하고 제작해서 공급합니다.

전극 제조용 설비

Process	Equipment
Mixing	Powder feeding units, Planetary Despa (PD) mixer, High Disper (HD) mixer, Binder solution mixer, Storage tanks Auto line control systems
Coating	Comma coater, Comma reverse coater, Slot die coater, Gravure coater, Hybrid coater, Density inspection in line
Calendering	Roll presser, Heated roll presser, Induction heat annealing, Thickness measurement in line
Slitting	Multi lane slitter, Surface defect inspection / labeling in line
Logistics	Auto electrode transportation AGV and rack systems

원통형 전지 조립용 설비

Category	Process	Equipment
Inner cell assembly	Electrode drying	Vacuum drying oven
	Electrode tab welding	Ultrasonic tab welder, Laser tab welder, Reel to reel tab welder
	Winding	Semiauto reel to reel winder, Automatic winder
Packaging	Anode tab welding	Electric resistance welding(ERW) and swaging machine
	Can beading	Can beading machine
	Electrolyte(EL) filling @vacuum and pressurizing	Pallet type EL filling machine, Chamber type EL filling machine
	Cathode tab welding	Laser welder, Ultrasonic welder
	Crimping	Crimping and sizing machine
	Washing	Cell washing and tubing machine

리튬이온 파우치 전지 조립용 설비

Category	Process	Equipment
Inner cell assembly	Electrode notching	Notching machine
	Electrode drying	Vacuum drying oven
	Stacking	Zigzag stacking machine
Packaging	Tab welding	Ultrasonic tab welding machine, Laser tab welding machine, Hybrid tab welder
	Pouch cup forming	Pouch cup forming machine
	Sealing	Tab side sealing machine, Side sealing machine
	Electrolyte(EL) filling	EL filling machine
	Degassing	Degassing, rolling and sealing machine

리튬 메탈 파우치 전지 조립용 설비

Category	Process	Equipment
Inner cell assembly	Cathode notching	Universal notching machine
	Cathode drying	Vacuum drying oven
	Stacking	Anode notching(laser) and zigzag stacking machine
Packaging	Tab welding	Anode(laser) and cathode(ultrasonic) tab welding machine
	Pouch cup forming	Pouch cup forming machine
	Sealing	Tab side sealing machine, Side sealing machine
	Electrolyte(EL) filling	EL filling machine
	Degassing	Degassing, rolling and sealing machine

알루미늄 각형 조립용 설비

Category	Process	Equipment
Inner cell assembly	Electrode notching	Universal notching machine
	Electrode drying	Vacuum drying oven
	Stacking	Zigzag stacking machine
	Winding	Laser notching and winding machine
Packaging	Heat pressing	Heat presser
	Tab welding	Tab pre-welding and top-cap welding machine
	Insulating	Insulating film assembly machine
	Can / cap welding	Can / cap laser welding and leak checking machine
	Electrolyte(EL) filling	EL filling machine
	Sealing	Seal-pin welding and leak checking machine

포메이션 및 전지 성능 테스트 설비

Category	Process	Equipment
Formation	Pre-formation	Pre-formation system (with degassing)
	Aging / Storage	Rack system
	Formation	Charge / Discharge system
	Grading	Rank sorting machine
	IR / OCV	ACR, DCR, OCV measuring system
	Logistics	Auto crane system
Test	Cycle test	Cycler
Test	Chamber	Temperature controlled chambers (with fire extinguisher)
